Precision Weave Heavy Duty Metal Wire Mesh Loom Efficient 1600B
1.Precision Weave Heavy Duty Metal Wire Mesh Loom Efficient 1600B description
1.Our independently developed Metal Wire Mesh Weaving Machine is widely used in industrial applications such as precision filtration mesh, protective mesh, and screening mesh. The machine supports various wire diameters and mesh sizes and is compatible with stainless steel, copper, nickel, aluminum, and other metallic wires. Customers can flexibly configure key components such as machine type, drive system, tension control, and CNC system to achieve efficient and precise automated production.
2.We can provide customized production based on the customer's specific requirements On top of the basic models, flexible configuration options are available to meet different production needs.
3.System enhances mesh quality and reduces manual adjustment Compatible with Various Metals such as copper, aluminum, stainless steel, titanium, etc.Globalized Customization to meet regional needs across Europe, Asia, and the Middle East.
2.Precision Weave Heavy Duty Metal Wire Mesh Loom Efficient 1600B parameter
BWR-1600B
| |
| Standard weaving width | 1600mm |
| Wire dia range | 0.015-0.25mm |
|
Weaving density |
Plain weave,twill weave,satin weave 10-400mesh/inch Herringbone pattern(Dutch pattern) 10-1400mesh/inch |
|
Speed (The actual rotational speed depends on the weaving specifications. |
110RPM |
| Base tension | 15000N/M |
| The method of setting the net | Infinite network connection |
| General form | Architrave(5 architraves) |
| Total power | 8.2KW |
| Boundary dimension | L3150*W3250*H1750 |
| Net weight | 4T |
3.Precision Weave Heavy Duty Metal Wire Mesh Loom Efficient 1600B applications
· High-volume production of standard wire cloth for fencing and fencing.
· Manufacturing of welded mesh panels for construction.
· Continuous production of conveyor belts and process belts.
· Any application requiring large volumes of consistently high-quality mesh with minimal human intervention.

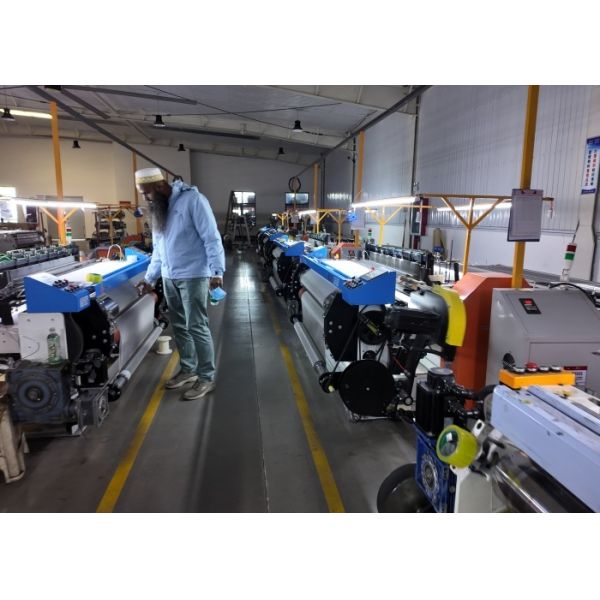

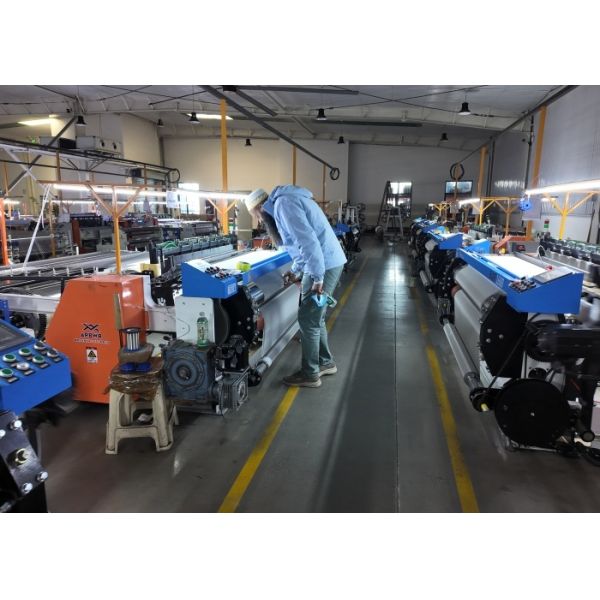

4.Detailed images
